• 17" x 7.5" steel styled wheels
• LT245/70R17E all-season BSW tires
• Center hub
• 17" steel spare wheel
• Full size spare tire
• Winch-type tire carrier
• Black front bumper
• Black rear bumper
• Front bumper sight shields
• Front air dam
• Black grille
• Quad halogen headlamps
• Automatic headlamps
• Body color headlamp filler panel
• Cargo lamp
• 6" x 9" manual mirrors -inc: black mirror caps
• Tinted glass
• Body color fuel filler door
• Black door handles
• Variable speed intermittent windshield wipers
• Front license plate bracket
• Fixed rear window
• Locking tailgate
• Vendor painted cargo box tracking

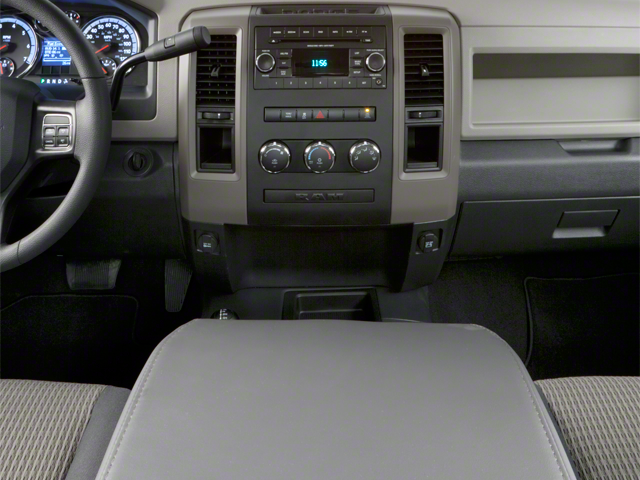

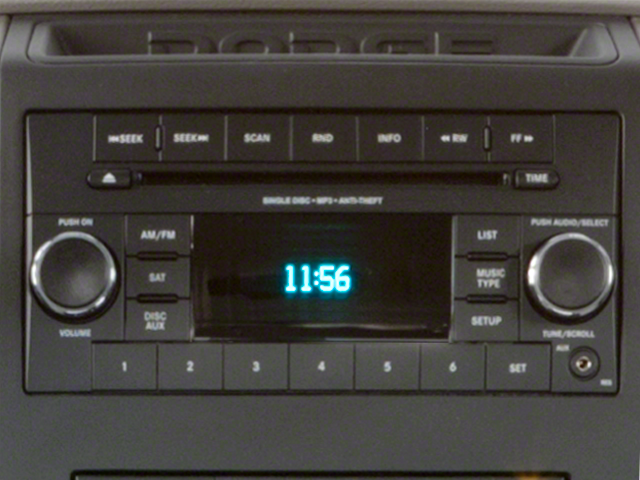

• Uconnect 130 -inc: AM/FM stereo, CD/MP3 player
• (6) speakers

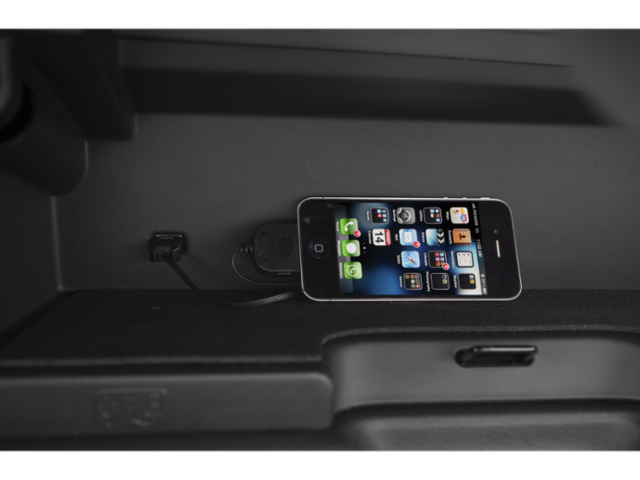

• Audio input jack
• Fixed long mast antenna

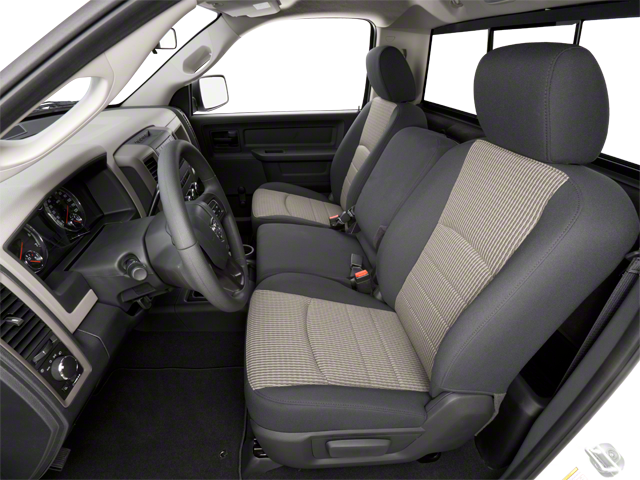

• HD vinyl 40/20/40 split bench seat

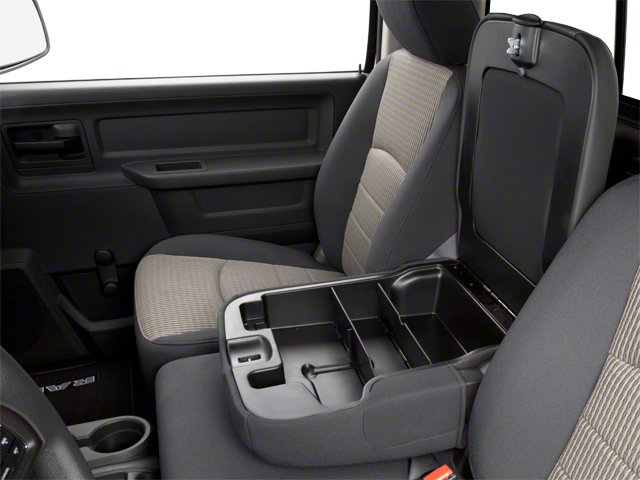

• Mini floor console
• Black vinyl floor covering

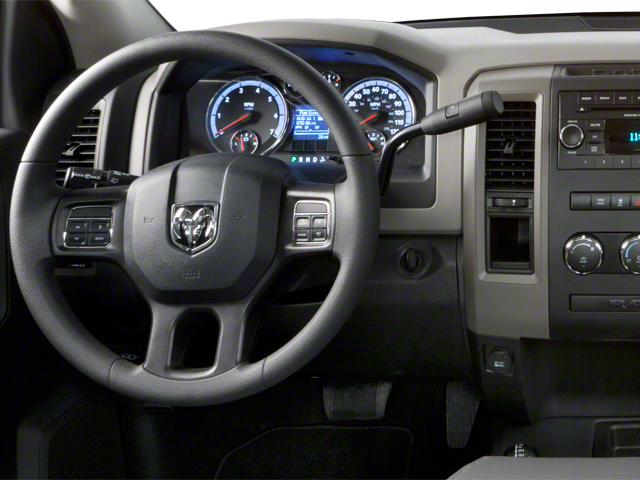

• 4-spoke steering wheel
• Tilt steering column
• Sentry Key theft deterrent system

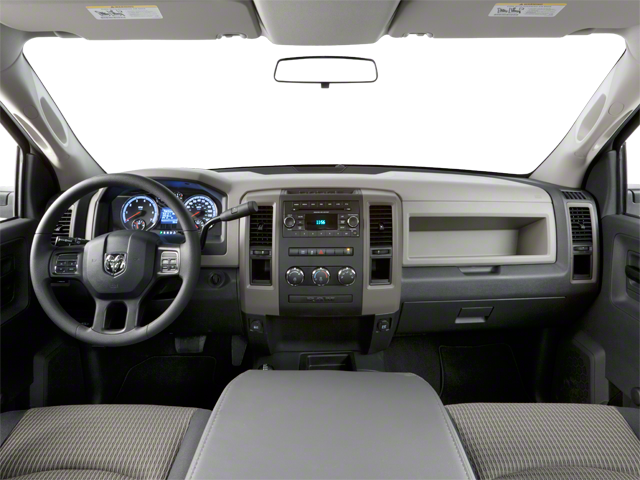

• Instrument cluster w/display screen
• Vehicle info center
• 120-MPH primary speedometer
• Pwr accessory delay
• Speed control
• Air conditioning
• 12V pwr outlet
• Rearview day/night mirror
• Black instrument panel bezel
• Driver/passenger assist handles
• Dual visors
• Rear dome lamp
• Behind seat storage bin

• Electronic stability control
• Advanced multistage front air bags
• Supplemental side air bags
• Supplemental front seat side air bags
• Supplemental side curtain front air bags
• Passenger air bag on/off switch
• Front height-adjustable shoulder belts
• Tire pressure monitoring display
• Dual-note horn

6-SPEED AUTOMATIC TRANSMISSION W/OD ($0)

• (STD)

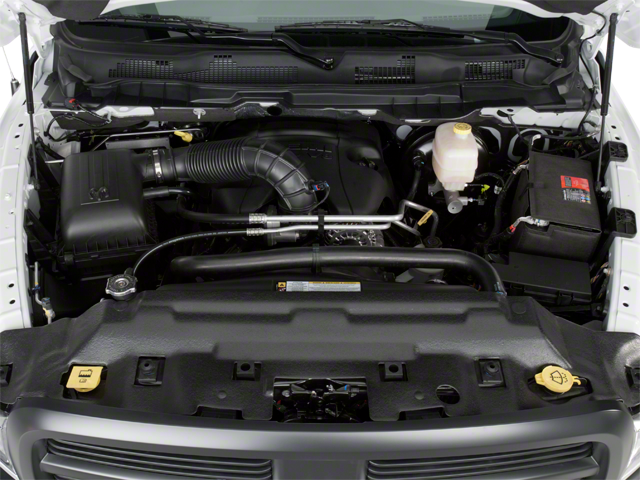

5.7L SMPI V8 HEMI ENGINE W/VARIABLE VALVE TIMING ($0)

• (STD)

26A ST CUSTOMER PREFERRED ORDER SELECTION PKG ($0)

• 5.7L V8 engine
• 6-speed auto trans

LT245/70R17E ALL-SEASON BSW TIRES ($0)

• (STD)

HD SNOW PLOW PREP GROUP ($85)

• 180-amp alternator
• transfer case skid plate shield

17" X 7.5" STEEL STYLED WHEELS ($0)

• (STD)

• 6-SPEED AUTOMATIC TRANSMISSION W/OD (STD)
• 5.7L SMPI V8 HEMI ENGINE W/VARIABLE VALVE TIMING (STD)
• ANTI-SPIN REAR AXLE
• 26A ST CUSTOMER PREFERRED ORDER SELECTION PKG -inc: 5.7L V8 engine 6-speed auto trans
• 3.73 AXLE RATIO
• LT245/70R17E ALL-SEASON BSW TIRES (STD)
• MINERAL GRAY METALLIC
• TRANSFER CASE SKID PLATE SHIELD
• MONOTONE PAINT
• HD SNOW PLOW PREP GROUP -inc: 180-amp alternator transfer case skid plate shield
• 17 X 7.5 STEEL STYLED WHEELS (STD)
• DARK SLATE/MEDIUM GRAYSTONE INTERIOR HD VINYL 40/20/40 SPLIT BENCH SEAT
• Four Wheel Drive
• Four Wheel Drive
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Automatic Headlights
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Vinyl Seats
• Split Bench Seat
• Adjustable Steering Wheel
• Immobilizer
• Cruise Control
• A/C
• Power Outlet
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Side Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag On/Off Switch
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: 1904
• Cooling System
• Total Cooling System Capacity (qts): 18.7
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 6000
• Curb Weight - Front (lbs): 3448
• Curb Weight - Rear (lbs): 2506
• Gross Vehicle Weight Rating Cap (lbs): 8650
• Gross Combined Wt Rating (lbs): 17000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1635
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: Five-Link
• Suspension Type - Rear: Hotchkiss
• Spring Capacity - Front (lbs): w/Coil Springs
• Spring Capacity - Rear (lbs): w/Leaf Springs
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.2 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: TWD
• Rear Tire Order Code: TWD
• Spare Tire Order Code: TBB
• Front Tire Size: LT245/70R17E
• Rear Tire Size: LT245/70R17E
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 41.6
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Inboard Frame Rail
• Exterior Dimensions
• Wheelbase (in): 140.0
• Length, Overall w/o rear bumper (in): 231.0
• Width, Max w/o mirrors (in): 78.9
• Height, Overall (in): 75.7
• Overhang, Front (in): 39.9
• Overhang, Rear w/o bumper (in): 50.5
• Front Bumper to Back of Cab (in): 123.7
• Cab to Axle (in): 56.7
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 38.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.5
• Ground Clearance, Rear (in): 7.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.3
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 74.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.3
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.0
• Front Hip Room (in): 62.9
• Summary
• Vehicle Name: Ram 2500
• Body Style: Reg Cab Pickup
• Body Code: 140.5" WB
