• Painted body-color front bumper w/black lower valance & body-color fascia
• Painted body-color rear step bumper
• Body-color grille surround
• Black "bar style" grille insert
• Cargo lamp integrated w/high mount stop light
• Manual paddle-type side mirrors
• Fixed rear window w/solar tint glass
• Variable speed intermittent wipers
• Black door handles
• Black tailgate handle
• Removable tailgate w/key lock & lift assist

• Cloth 40/20/40 split bench front seat w/manual driver lumbar
• Black vinyl floor covering
• Black urethane steering wheel
• Tilt steering column
• SecuriLock anti-theft ignition (PATS)
• Display center-inc: warning messages & text functions
• Tire pressure monitoring system
• AM/FM stereo w/CD player & clock
• Auxiliary audio input jack
• Manual air conditioning
• Glove box
• Front pwr point
• Driver & passenger side A-pillar grab handles
• Sunvisors w/driver-side strap, passenger mirror
• Dome lamp

• Pwr front & rear anti-lock disc brakes (ABS)
• Dual stage driver & passenger front airbags w/passenger off switch
• Dual stage driver & passenger seat-mounted side airbags
• Seat integrated outside front lap & shoulder safety belts-inc: height adjusters, pretensioners, energy management retractors
• Center front 3-point safety belt
• Seat Belt Minder system
• Auto lock safety belt feature for child seats
• Dual note horn

4.6L EFI V8 ENGINE ($0)

• (STD)

• Four Wheel Drive
• Tow Hooks
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Conventional Spare Tire
• Chrome Wheels
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Cloth Seats
• Split Bench Seat
• Driver Adjustable Lumbar
• Adjustable Steering Wheel
• Immobilizer
• Tire Pressure Monitor
• AM/FM Stereo
• CD Player
• Auxiliary Audio Input
• A/C
• Power Outlet
• Passenger Vanity Mirror
• ABS
• 4-Wheel Disc Brakes
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag

• Mileage
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 17
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 110
• Maximum Alternator Watts: 1650
• Cooling System
• Total Cooling System Capacity (qts): 19.7
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3400
• Gross Axle Wt Rating - Rear (lbs): 3500
• Curb Weight - Front (lbs): 2874
• Curb Weight - Rear (lbs): 2030
• Gross Vehicle Weight Rating Cap (lbs): 6800
• Gross Combined Wt Rating (lbs): 11500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 750
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): 3150
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: Double Wishbone
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 36
• Shock Absorber Diameter - Rear (mm): 32
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Power
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 0.55
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 0.47
• Tires
• Front Tire Order Code: T7C
• Rear Tire Order Code: T7C
• Spare Tire Order Code: T7C
• Front Tire Size: P255/70R17
• Rear Tire Size: P255/70R17
• Spare Tire Size: P255/70R17
• Front Tire Capacity (lbs): 2105
• Rear Tire Capacity (lbs): 2105
• Spare Tire Capacity (lbs): 2105
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.0
• Turning Diameter - Curb to Curb (ft): 41.8
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 126.0
• Length, Overall w/o rear bumper (in): 211.2
• Width, Max w/o mirrors (in): 78.9
• Height, Overall (in): 75.6
• Overhang, Front (in): 36.9
• Overhang, Rear w/o bumper (in): 48.4
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): 62.4
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.3
• Tailgate Width (in): 65.2
• Cargo Volume (ft³): 65.5
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.9
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 66.5
• Front Hip Room (in): 65.4
• Summary

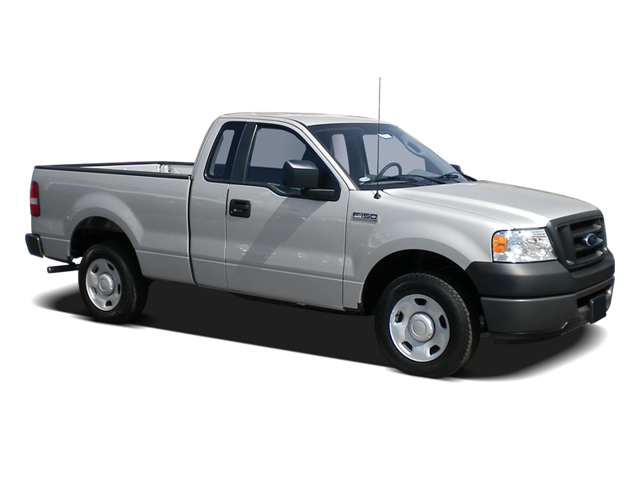

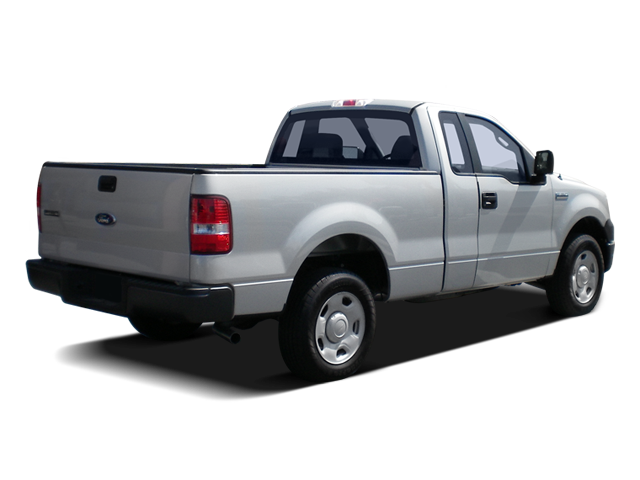

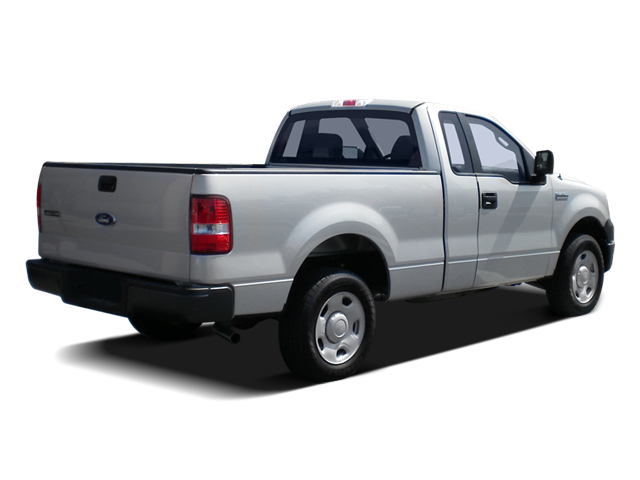

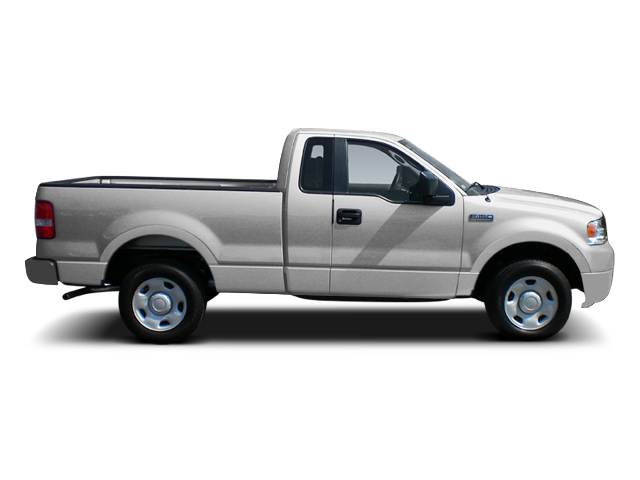

• Vehicle Name: Ford F-150
• Body Style: Reg Cab 6.5' Styleside
• Body Code: 126" WB
